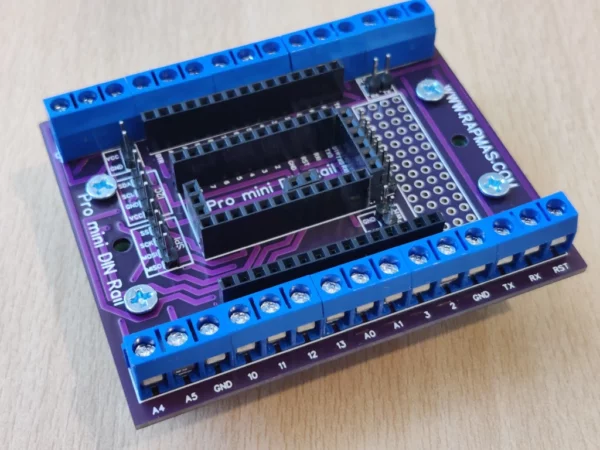

Arduino Pro Mini DIN rail adapter

16,00

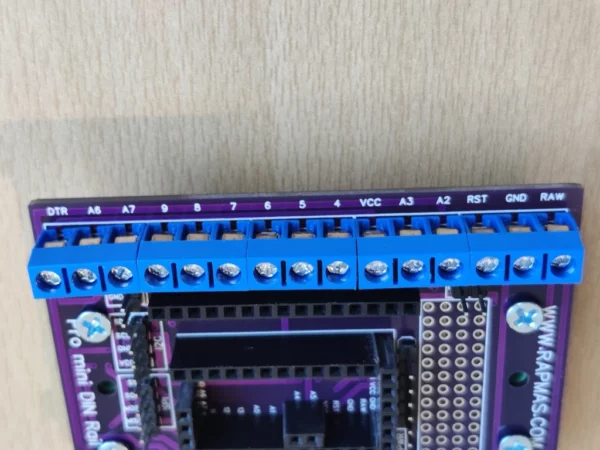

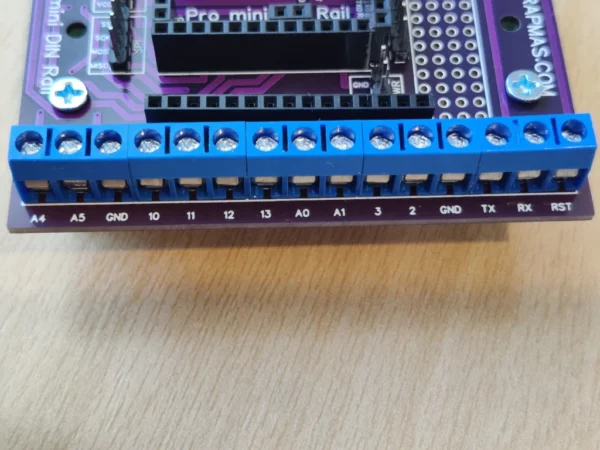

Arduino Pro Mini DIN rail adapter to 2.54 header and 5.01 screw terminal connections on DIN rail. Extra pins:

  • I2C
  • SPI
  • UART
  • 2 x Breadboard, 3×5 (15p) holes with a 2.54 mm distance

In stock

SKU: 702 Category:

Description

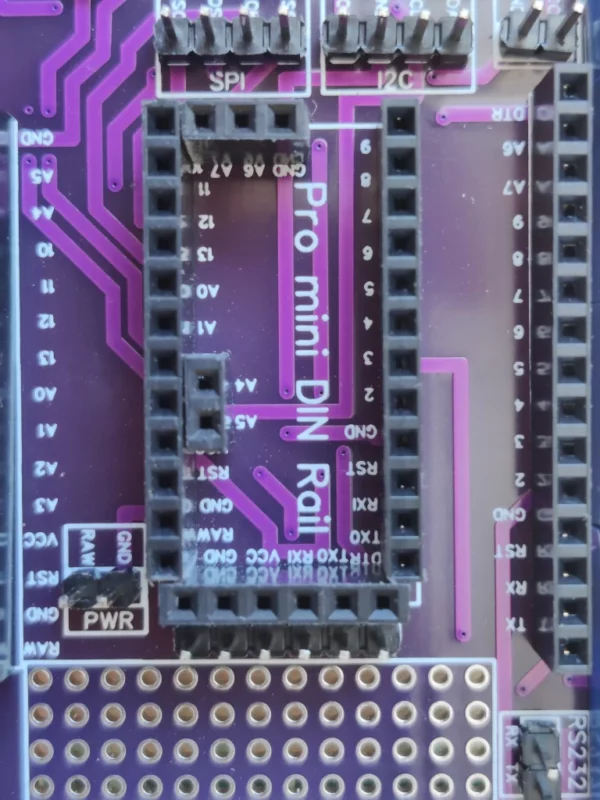

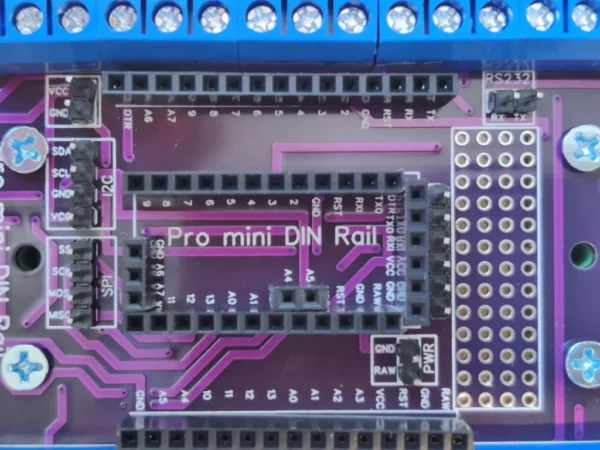

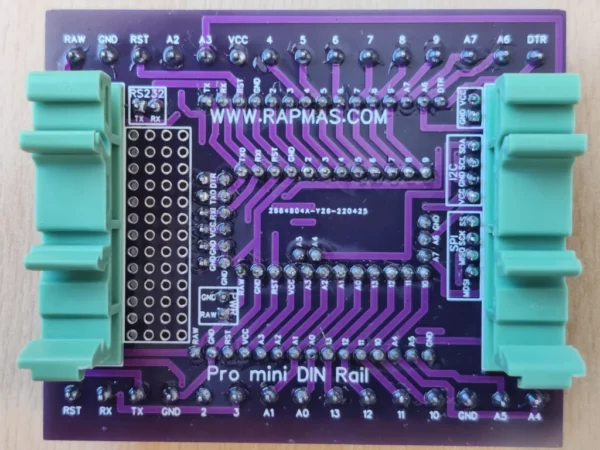

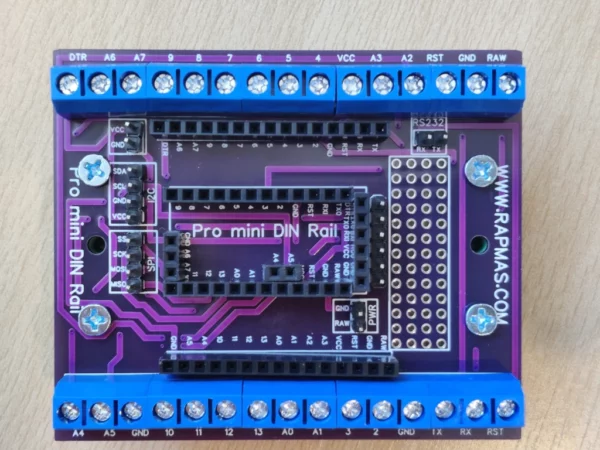

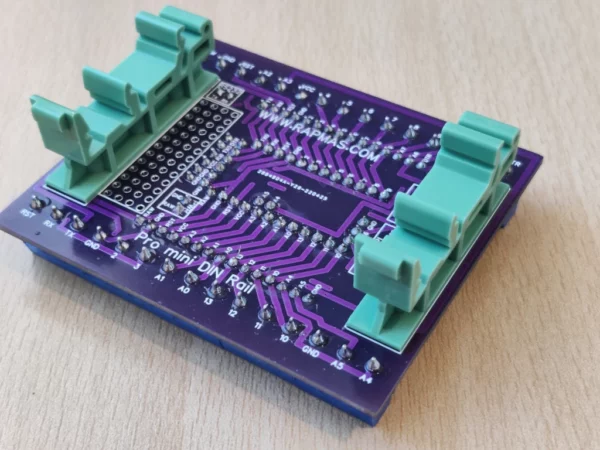

This adapter is made to provide a 2.54 Header and Terminal connections to an Arduino Pro Mini on a DIN Rail. All pins are labeled and marked, on the Pro Mini side and on the Header and terminal side. Moreover, there is also one additional 2X15 pin 2.54 Header.
Next extensions are present on board:

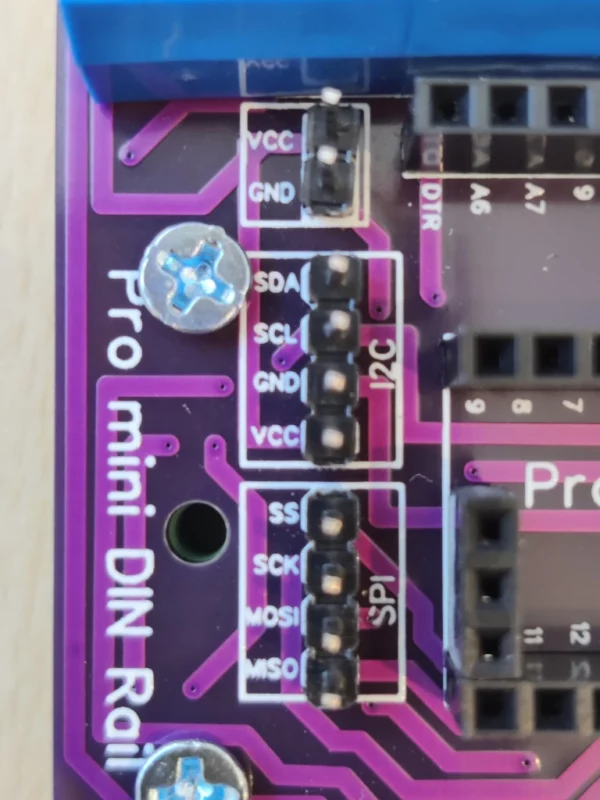

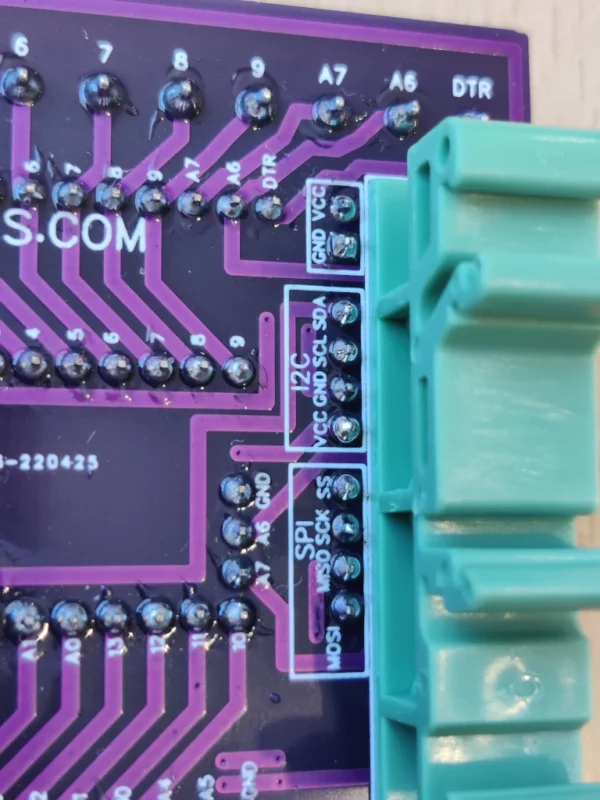

– I2C (VCC, GND, SDA-A4, SCL-A5)
– SPI (MOSI-19, MISO-12, SCK-13, SS-10)
– UART (TX-TXO, RX-RXI)

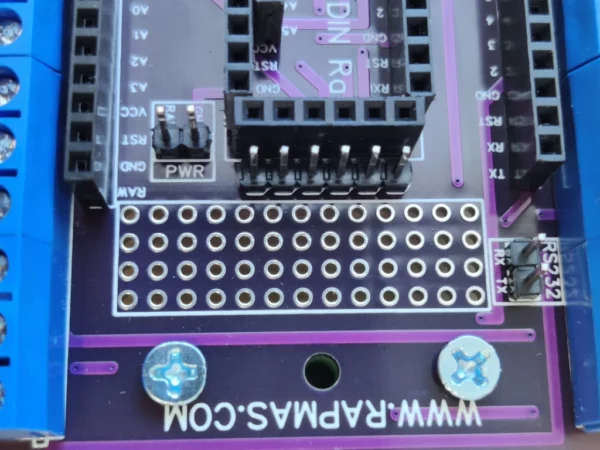

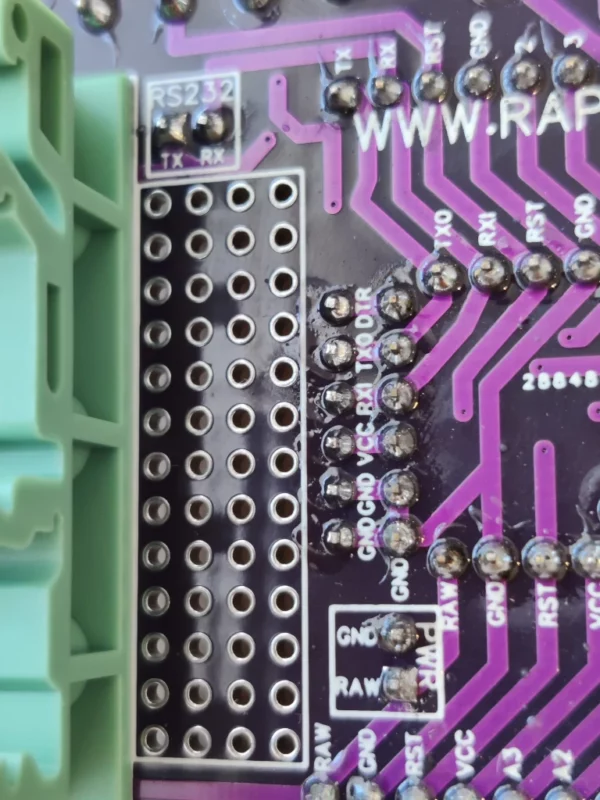

– Breadboard, 4×13 (52p) holes with a 2.54 mm distance

Size: 79 × 66 mm

Additional information

Weight 0,2 kg
