Technical parameters:
Sensor: MLX90614
Object temperature range: -70 to 380 °C
Environmental temperature range: -40 to 125°C
Resolution: 0.02 °C
Accuracy: 0.5 °C
Field of View: 80°
Distance between object and sensor: 2 to 5cm

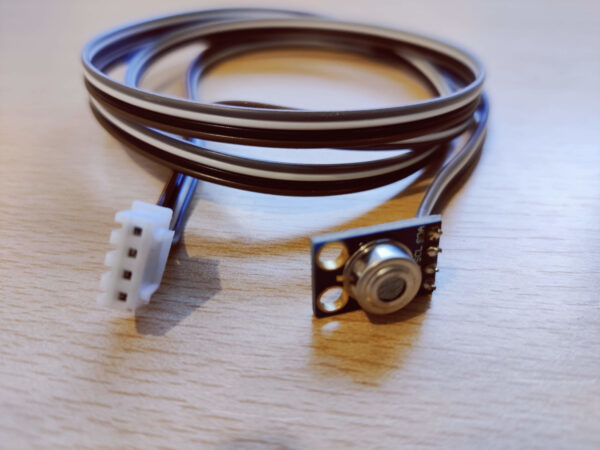

Sensor cable length: 1 meter
LCD size: 2.9″
Power: 220VAC
Mount: Panel mount in the hole
Hole size: 97 x 72mm

Availability: In stock

SKU: 1112 Categories: , ,

This dual thermometer is made to measure the temperature of an object and the air. The MLX90614 contactless infrared sensor makes both measurements. The measurement range is between -40 to +125 °C for air, and -70°C to +380 °C for objects.

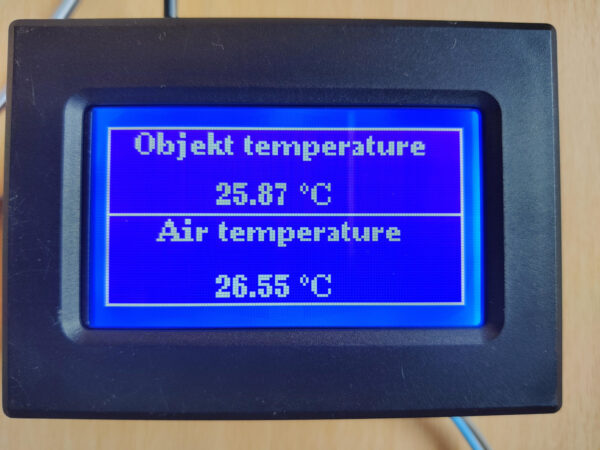

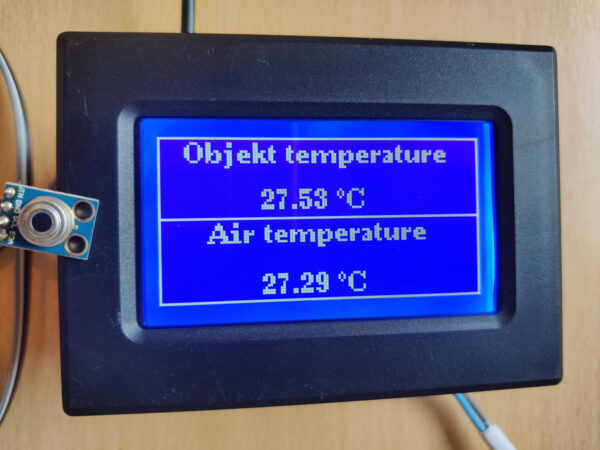

Measured data is presented on a big 2.9″ LCD. The panel can be mounted in a hole with a dimension of 97 x 72mm, and use 220VAC for power. The sensor cable is 1 meter in length.

The device can be used to:
– monitor temperature
– measure and write the temperature to a CSV file
