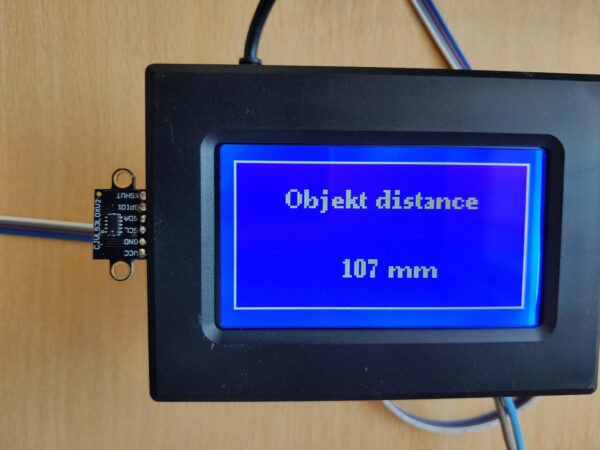

This device measures a distance with a laser beam in a non-visible spectrum (940 nm). It uses a VL53L0X Time-of-Flight (ToF) laser-ranging module to determine the distance between the object and the sensor. The effective measurement range is about 800mm (environment depended). Measurement presented in mm or inch.

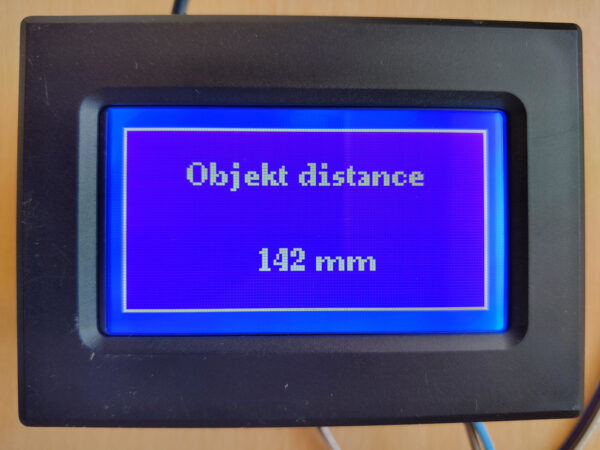

Measured data is presented on a big 2.9″ LCD. The panel can be mounted in a hole with a dimension of 97 x 72mm, and use 220VAC for power. The sensor cable is 1 meter in length.

Availability: In stock

SKU: 1100 Categories: , Tag:

Technical parameters:

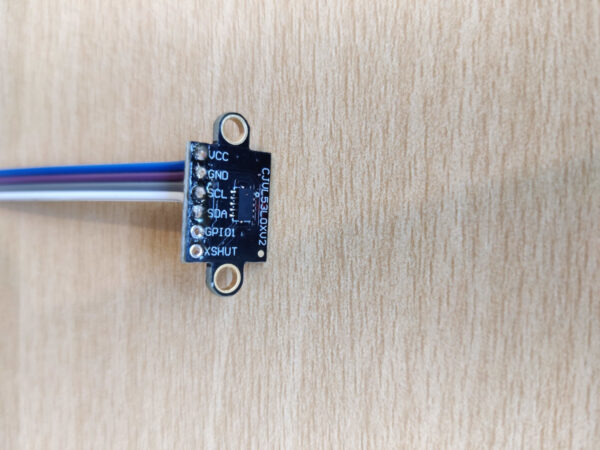

Sensor: VL53L0X Time-of-Flight (ToF) laser-ranging
Range: 10 – 800 mm
Resolution: 1 mm
Accuracy: ±3%
Sensor cable length: 1 meter
LCD size: 2.9″
Power: 220VAC
Mount: Panel mount in the hole
Hole size: 97 x 72mm

Weight 0,2 kg
