Raspberry Pi Zero DIN rail adapter

16,00

Raspberry Pi Zero DIN rail adapter to 2.54 header and 5.01 screw terminal connections on DIN rail. Extra pins:

  • 1-Wire
  • I2C
  • 2 X SPI
  • UART
  • 4 X PWM
  • 2 X breadboard, 5X5 (25p) holes with a 2.54 mm distance

In stock

SKU: 704 Category:

Description

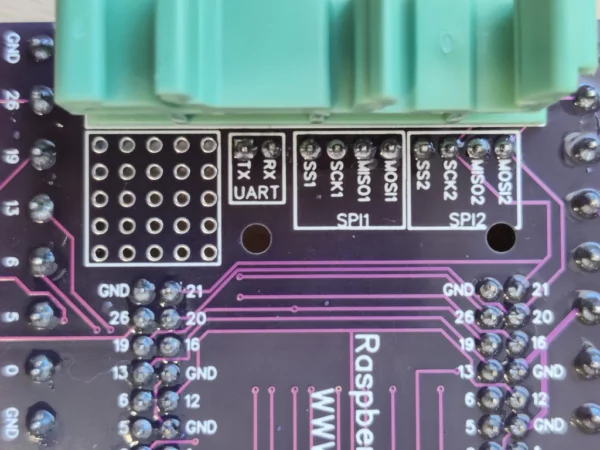

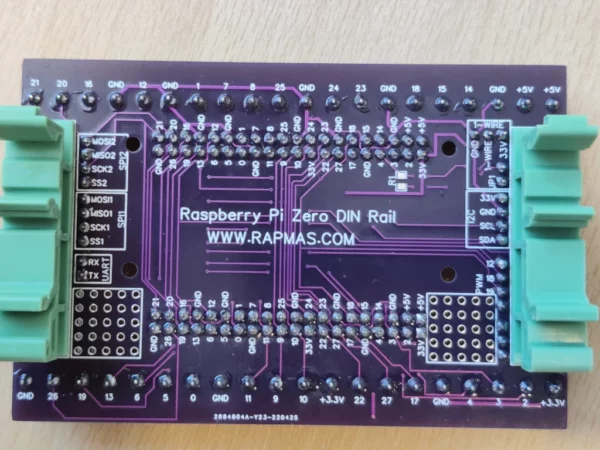

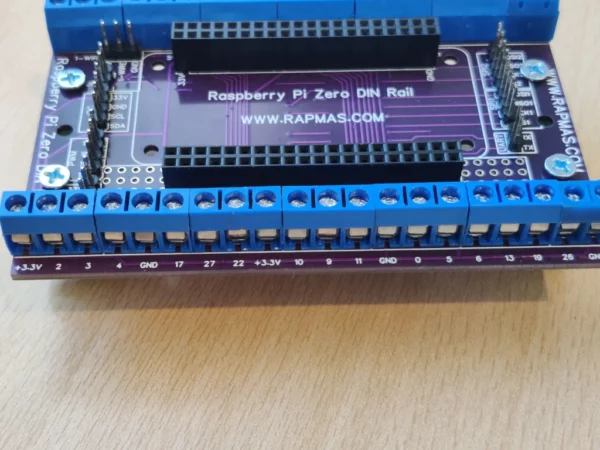

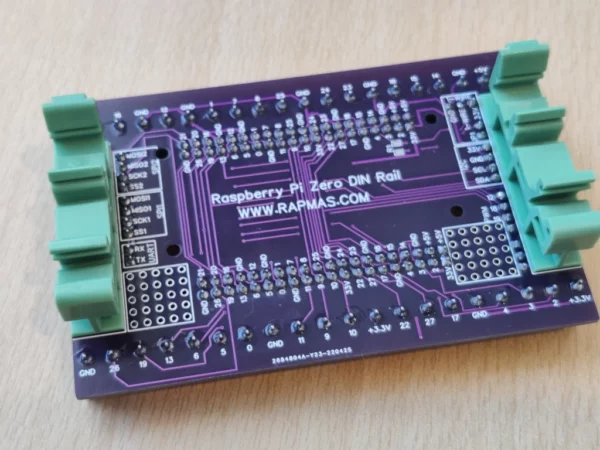

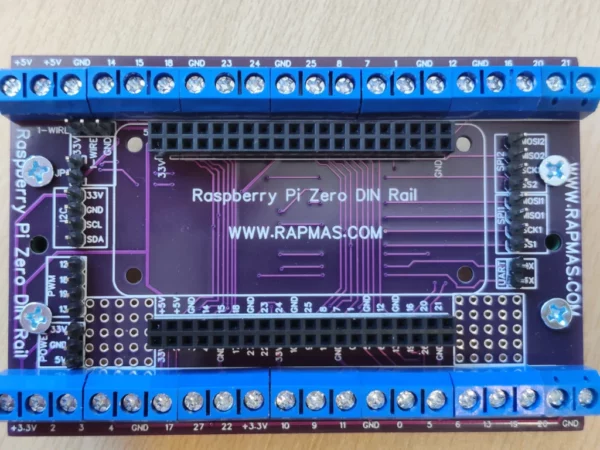

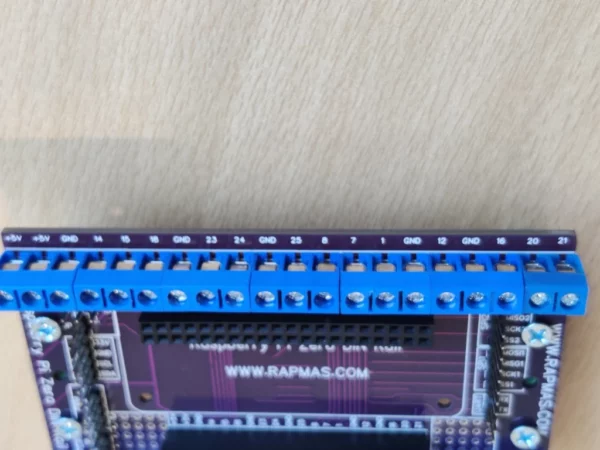

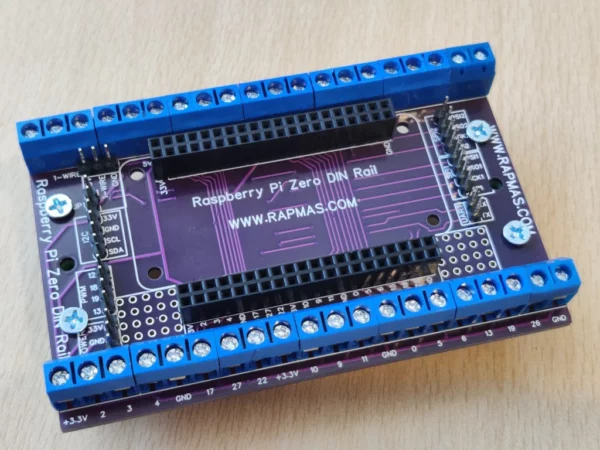

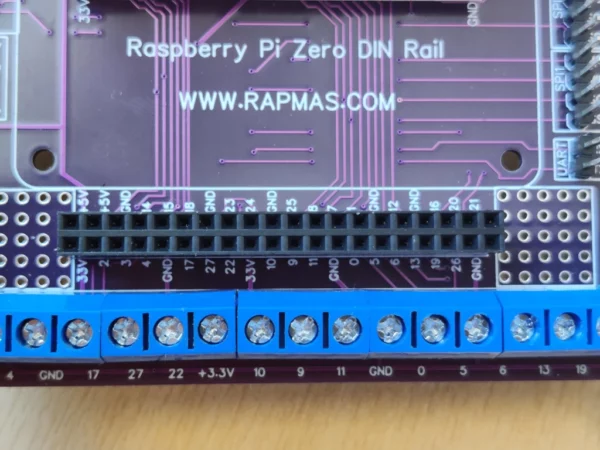

This adapter is made to provide a 2.54 header and terminal connections to a Raspberry Pi Zero on a DIN rail. All pins are labeled and marked, on the Pi Zero side and on the header and terminal side. Moreover, there is also one additional 2X20 Pin 2.54 Header.

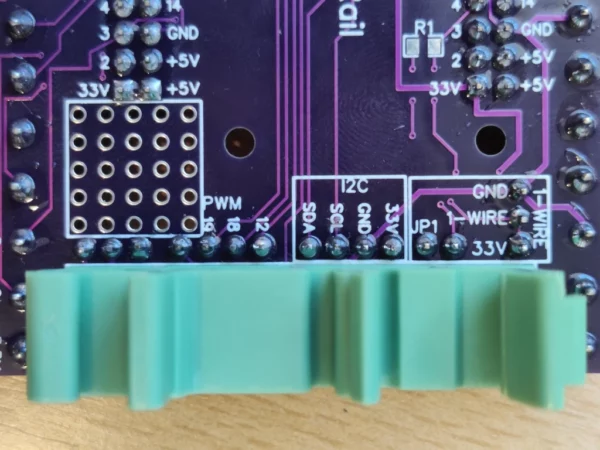

Next extensions are present on board:

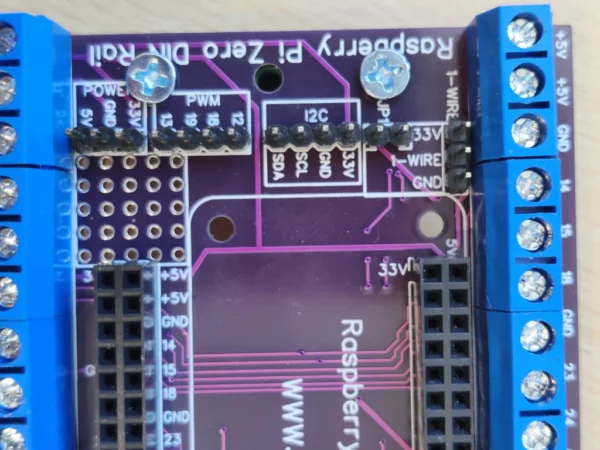

– 1-Wire (3.3V, GND, 1-Wire-GPIO4 with 4k7 resistor)
– I2C (3.3V, GND, SDA-GPIO2, SCL-GPIO3)
– PWM (GPIO12, GPIO18, GPIO19, GPIO13)

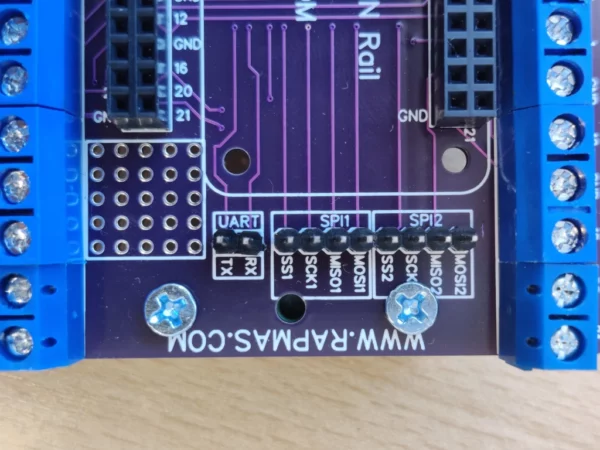

– SPI1 (MOSI1-GPIO10, MISO1-GPIO9, SCK1-GPIO11, SS1-GPIO8)
– SPI2 (MOSI2-GPIO20, MISO2-GPIO19, SCK2-GPIO21, SS2-GPIO18)
– UART (TX-GPIO14, RX-GPIO15)
– 2 breadboards, every 5×5 holes with a 2.54 mm distance

Size: 100 × 66 mm

Additional information

Weight 0,2 kg
