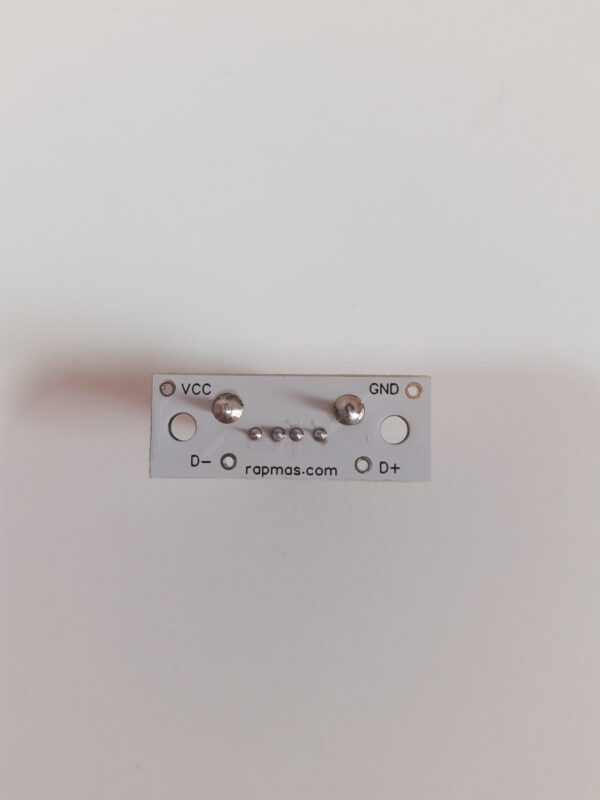

Vertical USB A PCB adapter


This adapter is made to put a USB A connector on panels and other plates, where the vertical mount of the USB connector is necessary.
The mounting holes are 3 mm in diameter, and the center of the two holes is 23 mm from each other.
The dimension of the PCB is 31×12 mm.
The following pinouts from USB A are made: GND, VCC, D+, and D-.
In a package are 5 pieces.

Availability: In stock

SKU: 804 Category: Tag:
