8-channel relay shield with Raspberry Pi Pico 120/220VAC power supply module

 35,00

Technical description:
– 8-channel relay shield
– 120 and 220VAC power supply
– triggering by MCU HIGH/LOW directly to ULN2803
– triggering by MCU I2C with MCP23008
– LED signalization of relays, PSU, and shield
– Raspberry Pi Pico included

Availability: In stock

SKU: 603 Category:

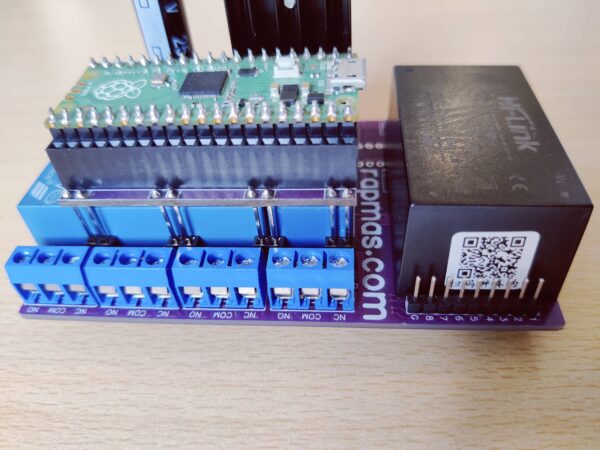

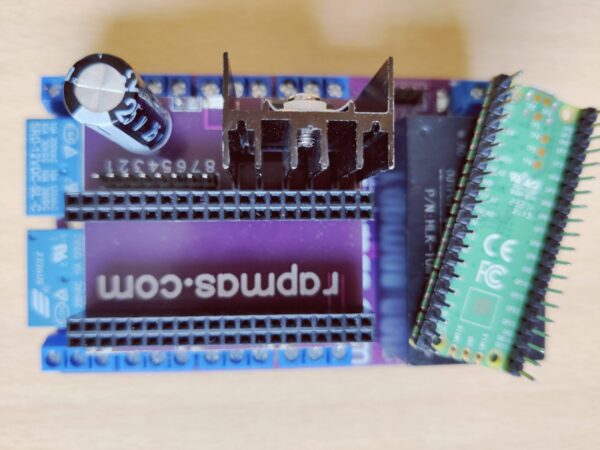

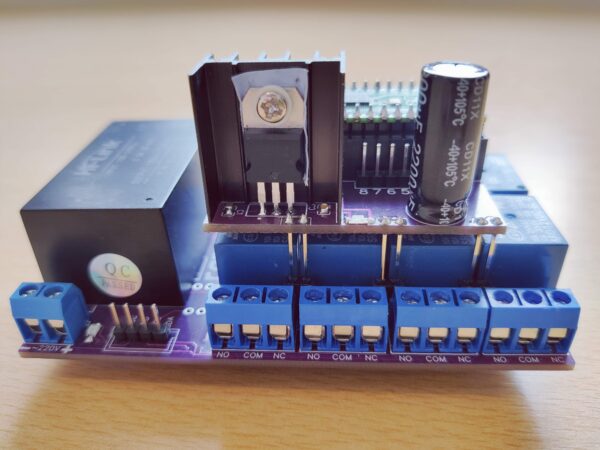

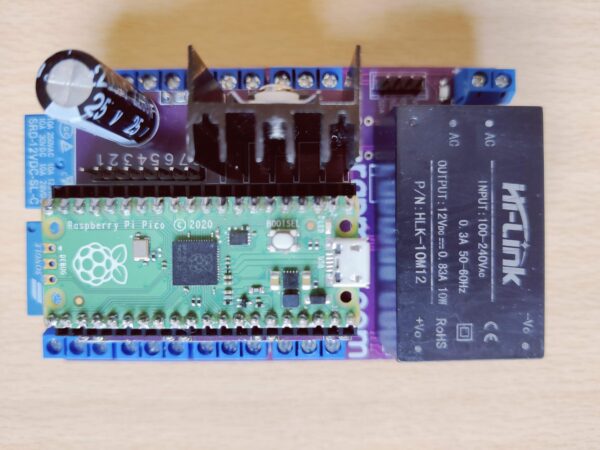

This module is made to drive 8 independent relays with an Raspberry Pi Pico. Its power supply unit is for 120 and 220VAC, to power the relays and the Raspberry Pi Pico. The relays can be triggered by setting the pin from Raspberry Pi Pico to HIGH. Also, on the relay shield is an I2C bridge, with the MCP23008 connected to ULN2803, so You can also use the I2C protocol to drive the relays.
The price is the Raspberry Pi Pico included.

Weight 0,1 kg
