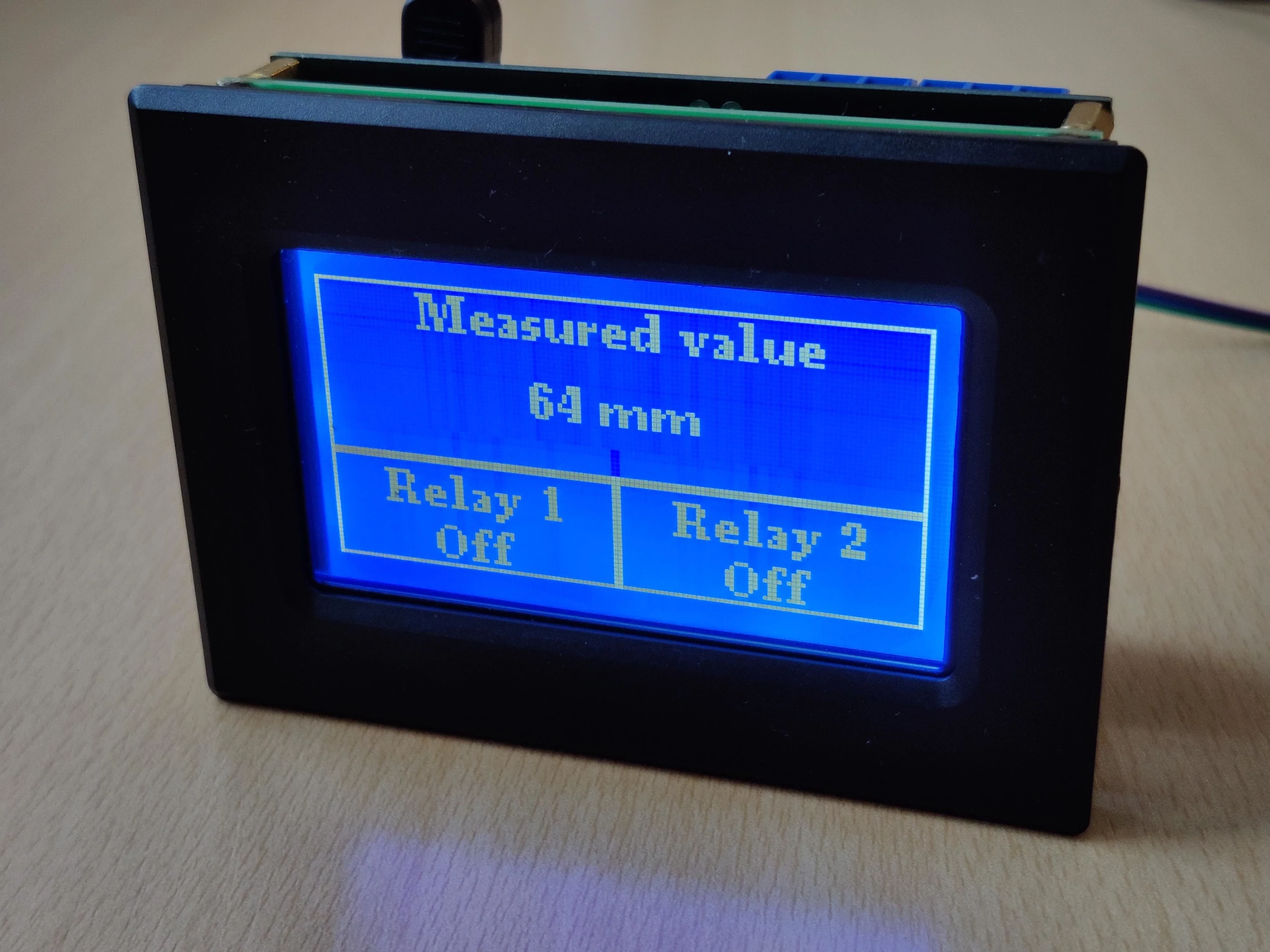

HydroLevelControl LCD Measurement
HydroLevelControl Software
HydroLevelControl LCD front On
HydroLevelControl LCD Frame
HydroLevelControl LCD Case
HydroLevelControl Backside Power Switching
HydroLevelControl Backside Microphone
HydroLevelControl Backside MCU
HydroLevelControl side view
HydroLevelControl PSU Microphone
HydroLevelControl PSU Relays
HydroLevelControl back side
HydroLevelControl Sensor Connector
HydroLevelControl Connector
HydroLevelControl Sensor Connector Backside
HydroLevelControl Sensor 5PSI Frontal
HydroLevelControl Sensor 5PSI Side
HydroLevelControl Sensors 5PSI and 15PSI

HydroLevelControl

90,00 € – 130,00 €

HydroLevelControl is a water level meter and control system, designed to be mounted in a panel. With an included software can be configured in runtime, without restart.

  • 2.9″ LCD with a blue backlight, panel mount
  • 1-meter cable between measuring point and device (extendable  to 10 meters)
  • Up to 20 meters measuring deep (sensor depended)
  • Visual and sound alarm
  • 2 independent relays
  • Multiple units and languages
  • Power over 220VAC and USB
  • Shipping from EU (Austria or Croatia, depended on store availability)
Clear

Description

HydroLevelControl is a bundle of hardware and software. Is designed to easily control the levels in reservoirs, pools, etc. Depending on the sensor, it can measure and control a fluid up to 21 meters, or even more (by request).

Mounting the device on a panel is easy, just make a hole with a dimension of 97 x 72mm. On the backside are the connectors for sensors, power supply, and relays. It uses 220VAC for power but can be powered over a USB port too.

The device has integrated two relays that can be configured independently from each other. Also, there is an alarming system with a sound buzzer and visual LCD background blinking, both independently configurable.

More information about the hardware can You read on the wiki page. The HydroLevelControl software can be downloaded free here.

Additional information

Weight 0.5 kg
Sensor

Without sensor, 3 meter H2O (5PSI), 10 meter H2O (15PSI), 20 meter H2O (30PSI)
