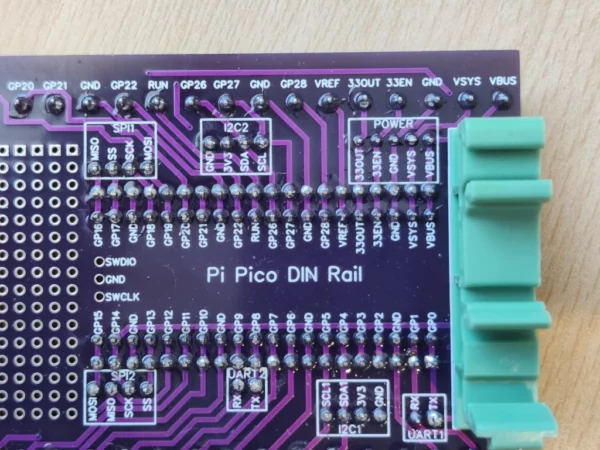

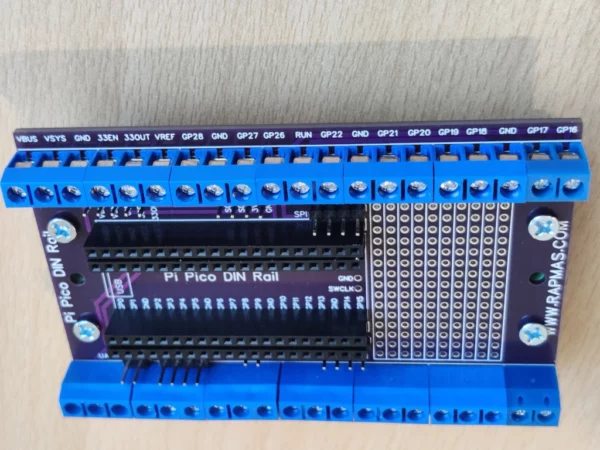

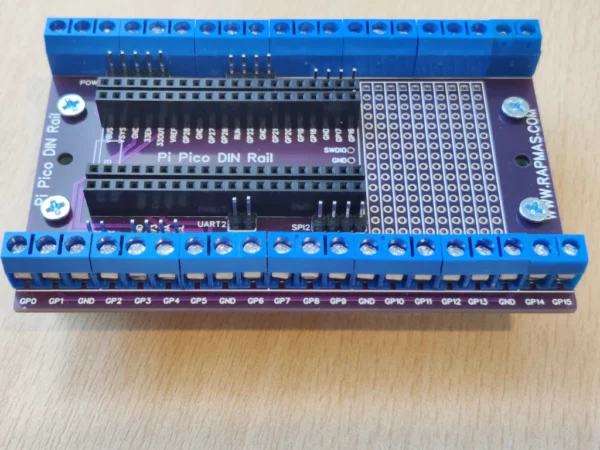

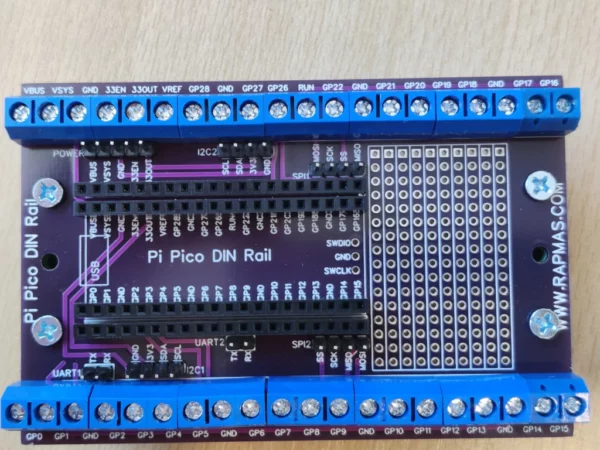

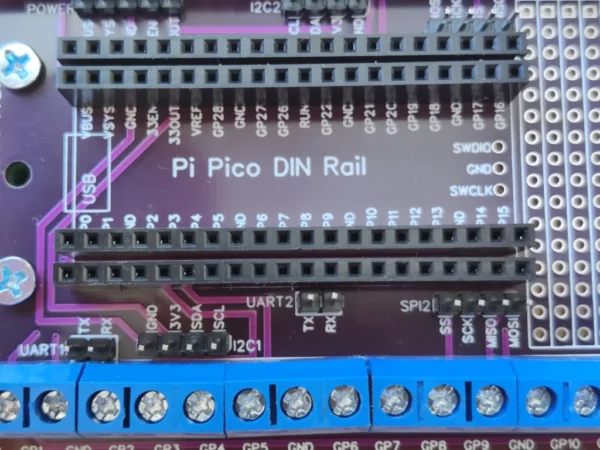

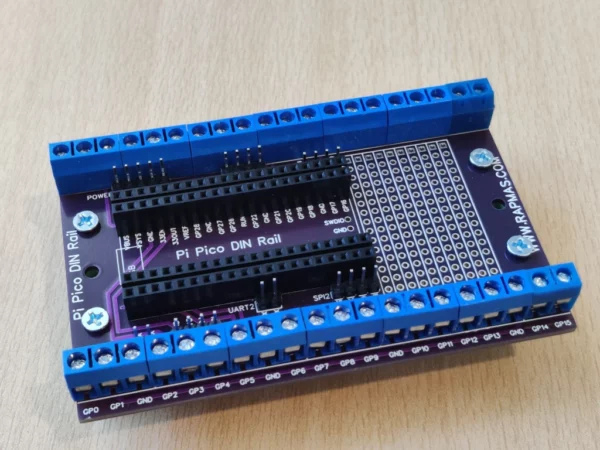

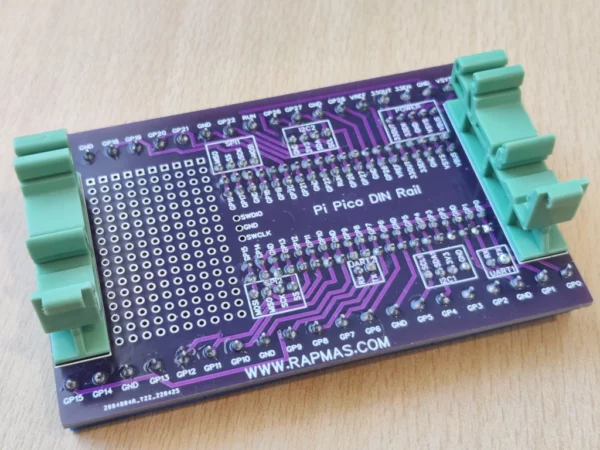

This adapter is made to provide a 2.54 header and terminal connections to a Raspberry Pi Pico on a DIN rail. All pins are labeled and marked, on the Pi Pico side and on the header and terminal side. Moreover, there is also one additional 2X20 pin 2.54 header.
Next extensions are present on board:
– I2C1 (3.3V, GND, SDA-GP4, SCL-GP5)

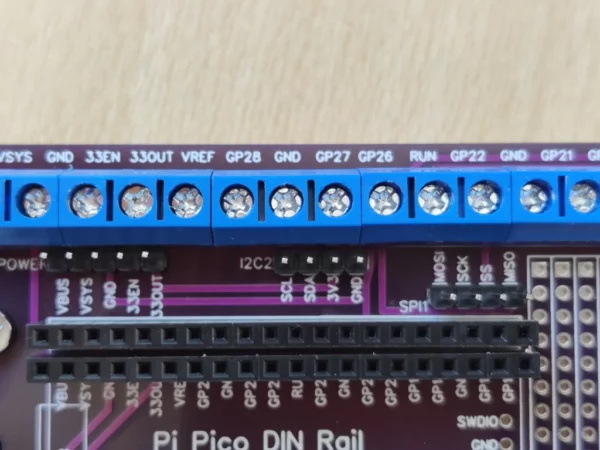

– I2C2 (3.3V, GND, SDA-GP26, SCL-GP27)
– SPI1 (MOSI1-GP19, MISO1-GP16, SCK1-GP18, SS1-GP17)
– SPI2 (MOSI2-GP15, MISO2-GP12, SCK2-GP14, SS2-GP13)
– UART1 (TX-GP0, RX-GP1)
– UART2 (TX-GP8, RX-GP9)

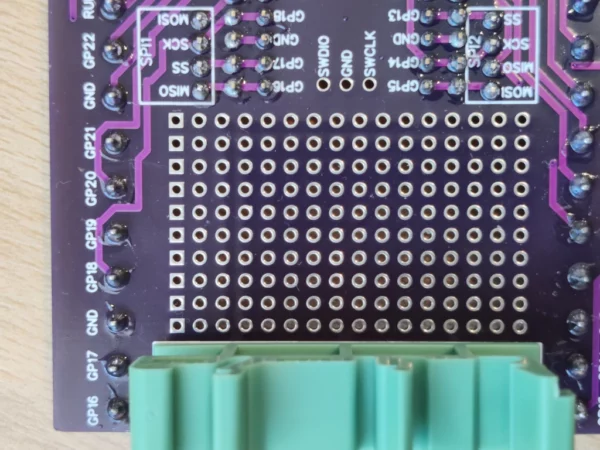

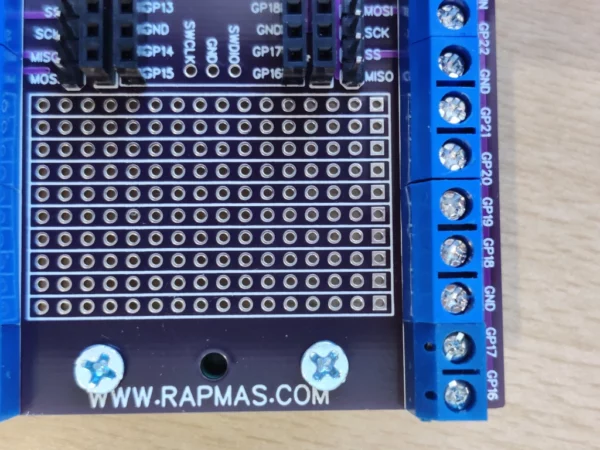

– Breadboard, 5×16 (80p) holes with a 2.54 mm distance
Size: 100 × 66 mm
